Gate Valve

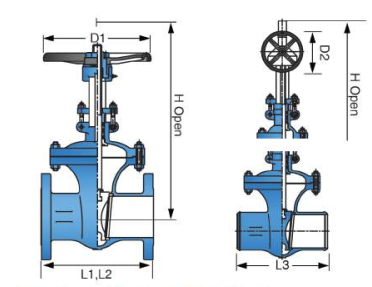

Face to Face: ASME B 16.10
End Flange: ASME B 16.5
Buttweld: ASME B 16.25
Rating: ASME Class 150

* 26" and larger are available with ASME B16.47 end flanges, either Series A or Series B (formerly MSS SP-44 and API 605)
